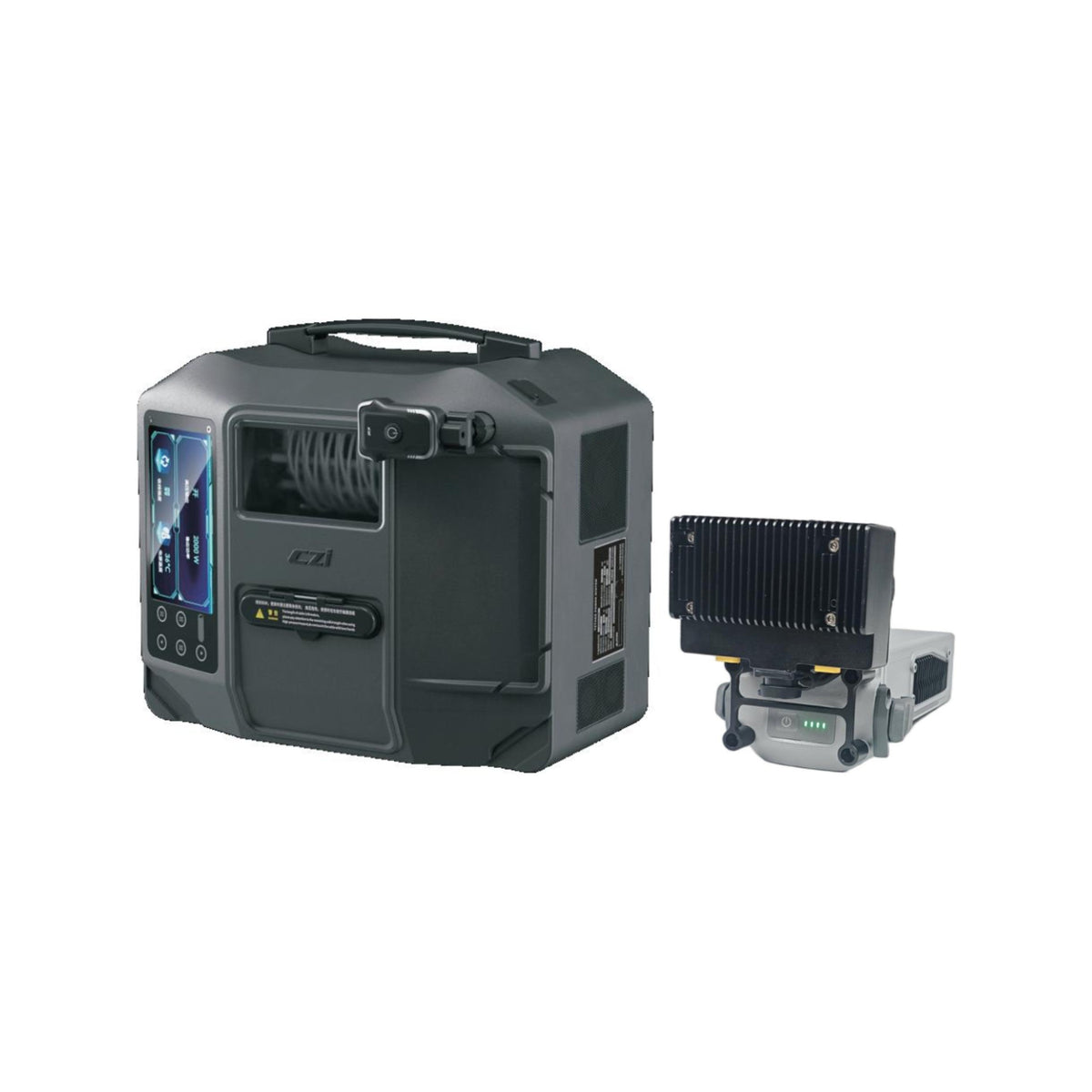

CZI TK3 - Matrice 4D Series Tethered Power System

A tethered power system designed specifically for the Matrice 4D/TD drone series. The system delivers continuous power via cable for extended flight operations without reliance on standard battery systems. Intended for surveillance, area monitoring, and operations requiring extended stationary aerial presence where continuous power supply takes priority over mobility.

• Continuous power delivery through tethered cable connection
• 5-inch bright display showing output power and system status
• Multi-layer safety protections against overvoltage, undercurrent, overcurrent, short circuits, and overheating
• Quick-mount attachment to drone undercarriage
• Supports wireless and tethered OTA firmware updates
• Includes specialized backpack for field transport

Ground Station:

• Weight: 7.5 kg
• Dimensions: 356 × 310 × 229 mm
• Maximum cable length: 50 meters

Air Module:

• Input voltage: 350–410V DC
• Output voltage: 17.2V DC (±1%)
• Continuous power capacity: minimum 600W
• Peak power: minimum 800W (under 10 seconds)
• Cooling: passive through fin design
• Protection rating: IP54
• Input connector: XT60
• Output connector: XT30
• Battery backup connection: supported
